PWM (Pulse Width Modulation)

2025-07-13 · embedded · basic · pwm

🟠 How to handle pulse width modulation

PWM (pulse width modulation) is used to control the power supplied to the load.

🔸 Classic method - reducing the voltage through a rheostat or potentiometer.
🔻 Disadvantage: inefficient, since part of the energy is lost as heat.

🔸 PWM method - supplying voltage in short pulses with a fixed amplitude.
Instead of changing the voltage, the duty cycle changes:

• More on time → more power
• Less on time → less power

This control method is efficient and causes almost no losses.

Brief

• mainly used to control the power supplied to the device.
• in some cases it can be used to transmit information for configuring the device.
• has a low power loss and the ability to digitally/software control.

It has 2 main parameters

• Frequency (switching frequency, Hz),
• Duty cycle (percentage of time in “HIGH” state, from 0% to 100%).

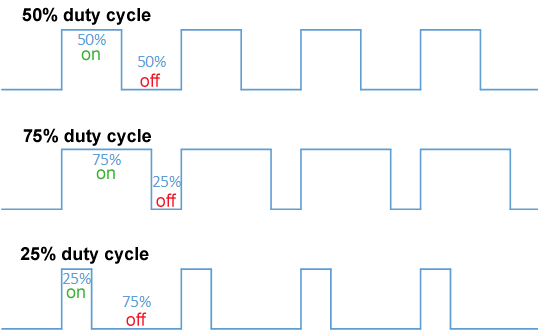

Duty cycle

• Percentage of time during which the signal is active
  • signal with 20% duty cycle is active 20% of the time
  • signal with 50% duty cycle is active 50% of the time
  • signal with 80% duty cycle is active 80% of the time

• The duty cycle can be set or controlled in 3 main ways
  • Manual method (Use various knobs or sliders)
  • Automatic (for example, using feedback on the output voltage in a pulse power supply)
  • Software (using some kind of intelligent system that changes the pulse width depending on external logic or parameters)

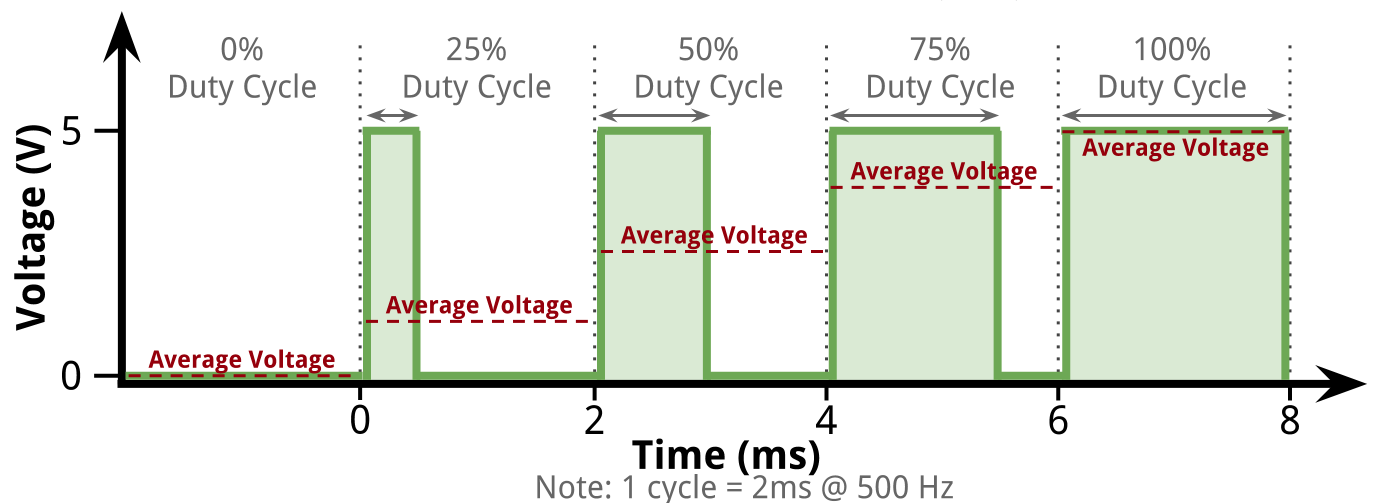

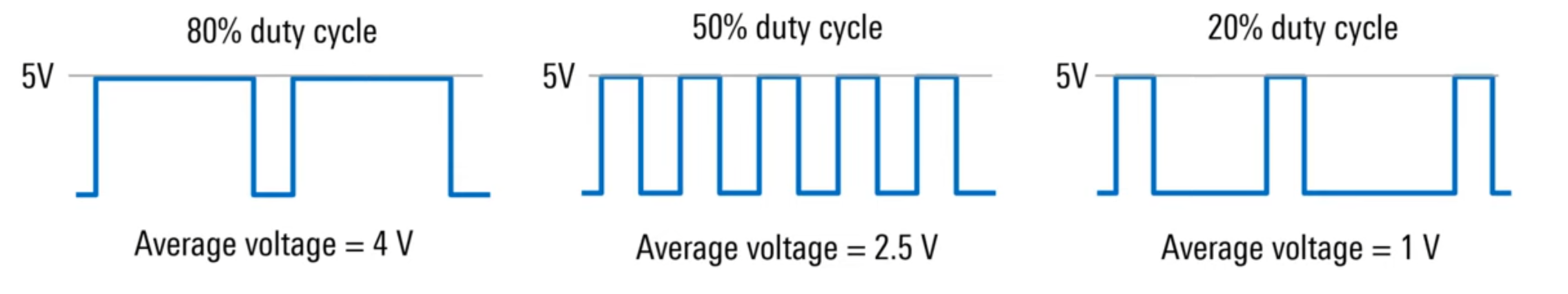

Average voltage level

PWM - often used to vary power by changing the average voltage level across a load.

• average load = peak voltage(5V) * duty cycle(20%) = 1V

Switching Frequency

• Switching frequency, which is defined as the reciprocal of the time between the leading edges of the voltage pulses.
• The required switching frequency depends on the load or application area
  • can be from 10Hz to several kHz
  • for applications where faster or more precise control is required - higher switching frequencies are used
  • but in most applications the switching frequency is fixed
• Signals can have the same duty cycles, but different switching frequencies

Examples of PWM Systems

🧱 Embedded Rust approach:

1. HAL library (e.g. stm32f1xx-hal, rp2040-hal, esp32-hal) provides API to peripherals.
2. PWM is usually implemented via timers (TIM).
3. Each PWM channel is assigned a GPIO pin and a timer.

🔨 General flow of creating PWM in Rust

1. Access PWM slices (Slices::new)
2. Configure PWM7 (it controls GPIO15 pin)
3. Configure channel B of this PWM (channel connected to GPIO15)
4. Connect GPIO15 to PWM as output
5. In the loop, change the duty cycle value to get the breathing effect

💡 Implementation: RP2040

use rp2040_hal::{self as hal, pwm::Slices};

    // PWM Slices Init
    let pwm_slices = Slices::new(pac.PWM, &mut pac.RESETS);
    // Get 7th slice (controls GPIO 14 (A) and GPIO 15 (B))
    let mut pwm_slice = pwm_slices.pwm7;

    pwm_slice.set_ph_correct(); // Phase correct mode = smoother signal
    pwm_slice.set_top(255); // 8-bit duty cycle precision
    pwm_slice.enable(); // enable slice

    // Get channel_b from 7th slice
    let mut channel_b = pwm_slice.channel_b;
    // Make channel_b output to 15th pin
    let _pin = channel_b.output_to(pins.gpio15);

    let mut duty: i16 = 0;
    let mut step: i16 = 1;

    loop {
        let _ = channel_b.set_duty_cycle(duty as u16);
        timer.delay_us(1000);

        duty += step;
        if duty >= 255 || duty <= 0 {
            step = -step;
        }
    }

🧰 Tips for working with PWM

• Do not exceed the frequency - some devices work up to 1-10 kHz.
• PWM resolution depends on the timer (8/10/12/16 bit).
• For multi-channel PWM use different channels of the same timer or timers.
• Use a logic analyzer or oscilloscope for visualization.
• Timers often work asynchronously - glitches at startup are possible.
• For silent PWM (LED) use frequencies > 1 kHz.
